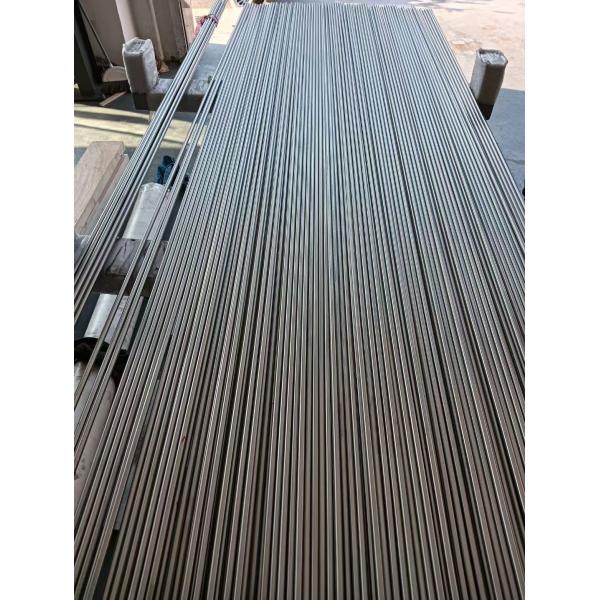

High-Permeability 1J85 Soft Magnetic Alloy Pipes for Precision Electronics
Product Overview
1J85, also known as Ni80Mo5 or Supermalloy, is a high-performance soft magnetic alloy composed primarily of 79.0–81.0% nickel and 4.8–5.2% molybdenum, with iron as the balance. This alloy is renowned for its exceptional magnetic properties, including high initial permeability and low coercivity, making it ideal for applications requiring efficient magnetic flux control in weak magnetic fields.
The alloy's high nickel content imparts excellent magnetic permeability, while the addition of molybdenum enhances its resistance to magnetic aging, ensuring long-term stability of magnetic properties. The low coercivity characteristic allows for easy magnetization and demagnetization, which is crucial in reducing energy losses in electromagnetic components.
1J85's physical properties include a density of 8.75 g/cm³ and an electrical resistivity of 0.56 μΩ·m. The Curie point, which is the temperature above which the material loses its permanent magnetic properties, is approximately 400°C. These attributes contribute to the alloy's suitability in high-frequency applications where thermal stability and minimal energy loss are essential.
1J85 Soft Magnetic Alloy Pipes Chemical Composition
| Element | Content (%) |
|---|---|
| Carbon (C) | ≤0.03 |
| Phosphorus (P) | ≤0.02 |
| Sulfur (S) | ≤0.02 |
| Manganese (Mn) | 0.3–0.6 |
| Silicon (Si) | 0.15–0.3 |
| Nickel (Ni) | 79.0–81.0 |
| Molybdenum (Mo) | 4.8–5.2 |
| Copper (Cu) | ≤0.2 |
| Iron (Fe) | Balance |
1J85 Soft Magnetic Alloy Pipes Mechanical Properties
| Property | Value |
|---|---|
| Density | 8.75 g/cm³ |
| Electrical Resistivity | 0.56 μΩ·m |
| Curie Point | 400°C |
| Saturation Magnetostriction Coefficient (λθ) | 0.5 × 10⁻⁶ |
1J85 Soft Magnetic Alloy Pipes Magnetic Properties
| Product Form | Thickness (mm) | Initial Permeability (μ₀) | Maximum Permeability (μₘ) | Coercivity (A/m) | Saturation Magnetic Induction (T) |
|---|---|---|---|---|---|
| Cold Rolled Strip | ≥0.01 | 20 | 87.5 | 4.8 | 0.75 |
| Cold Rolled Strip | 0.1–0.19 | 37.5 | 187.5 | 1.6 | 0.7 |
| Cold Rolled Strip | 0.2–0.34 | 50 | 225 | 1.2 | 0.7 |
| Cold Rolled Strip | 0.35–1.0 | 62.5 | 312.5 | 0.8 | 0.7 |
| Cold Rolled Strip | 2.6–3.0 | 43.8 | 150 | 1.44 | 0.7 |
1J85 Soft Magnetic Alloy Pipes Applications
1J85 soft magnetic alloy pipes are extensively used in:
Magnetic Shielding: Protecting sensitive electronic components from external magnetic fields.
Transformer Cores: Enhancing efficiency in small power transformers.
Magnetic Amplifiers: Improving performance in low-frequency applications.
Choke Coils: Reducing energy losses in electrical circuits.
Magnetic Recording Devices: Ensuring high fidelity in data storage systems.
What is the primary application of 1J85 soft magnetic alloy pipes?
1J85 soft magnetic alloy pipes are primarily used in applications requiring high magnetic permeability and low coercivity, such as transformer cores, magnetic amplifiers, and magnetic shielding.
What are the key benefits of using 1J85 alloy in electromagnetic components?
The key benefits include high initial permeability, low coercivity, low energy losses, and excellent thermal stability, making it ideal for efficient magnetic flux control in weak magnetic fields.
How does the chemical composition of 1J85 alloy contribute to its magnetic properties?
The high nickel content provides excellent magnetic permeability, while the addition of molybdenum enhances resistance to magnetic aging, ensuring long-term stability of magnetic properties.
|
|
